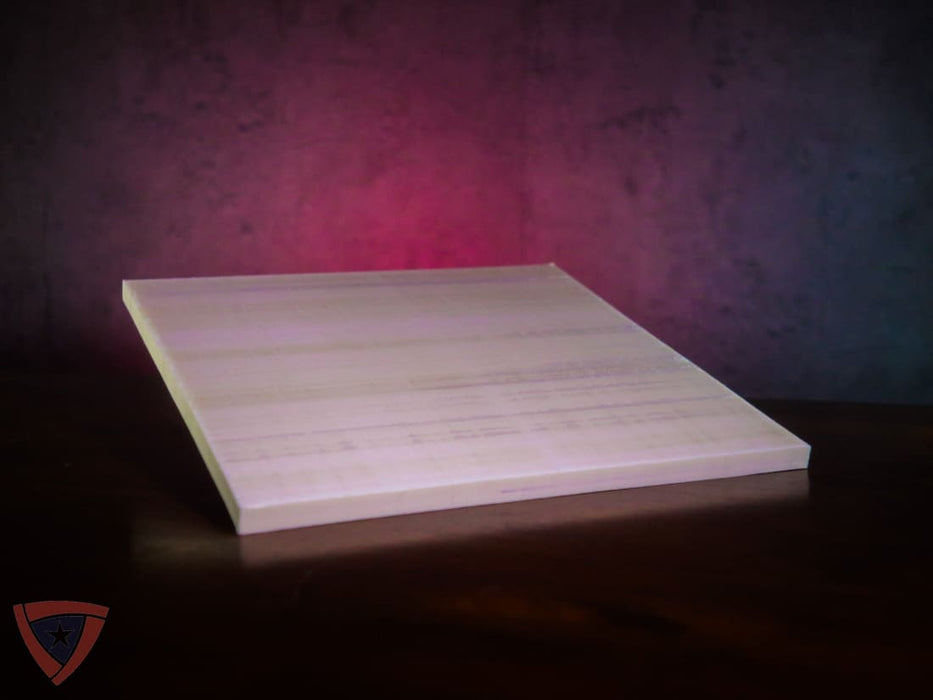

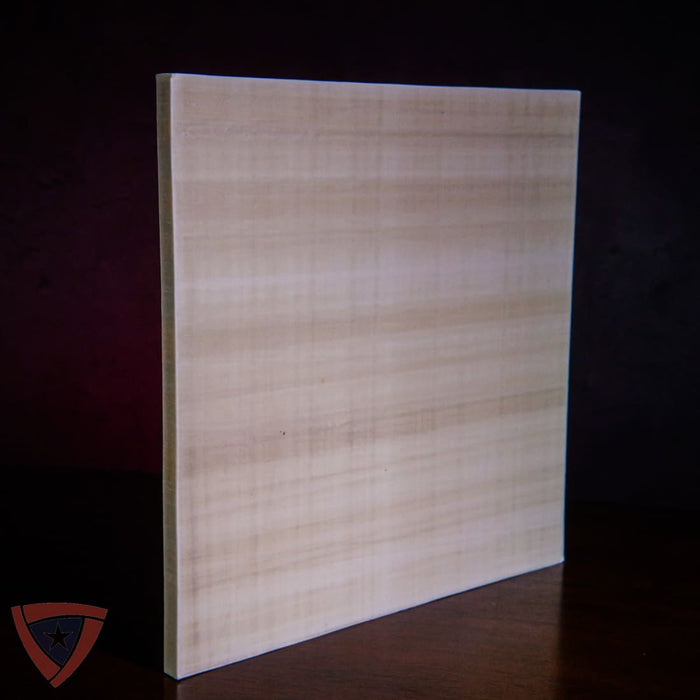

Our 1/2" Ultra High Molecular Weight Polyethylene (UHMWPE) Ballistic Panel offers advanced protection in a lightweight, high-performance configuration, engineered for critical defense and security applications. Comparable in strength and reliability to industry-leading materials such as Dyneema® and Honeywell Spectra®, this panel delivers exceptional stopping power while maintaining a low weight profile.
Key Features:
-
Material Composition: 100% UHMWPE – unidirectional cross-plied laminate structure for enhanced energy dispersion and multi-hit performance.
-
Panel Thickness: 0.50 inches (12.7 mm)
-
Weight: Approximately 2.8 lbs./ft² (13.7 kg/m²)
-
Ballistic Rating: NIJ 0108.01 RF2 – tested to stop 7.62x51mm (.308), 5.56mm M193 (AR-15), 7.62x39mm (AK-47) and similar rifle threats in accordance with U.S. National Institute of Justice standards.
-
Performance Characteristics:
-
Excellent multi-hit capability
-
Minimal backface deformation
-
Resistant to fragmentation and spalling
-
Non-corrosive and water-resistant
-
Superior energy absorption and thermal stability
-
-
Environmental Resistance: UV-stabilized, inert to water, moisture, and most industrial chemicals
-
Applications:
-
Armored vehicle integration (military, law enforcement, and high-risk civilian transport)
-
Fixed site protection (guard posts, safe rooms, panic rooms, infrastructure shielding)
-
Modular protective structures and OEM ballistic systems
-
Benefits:
-
Lightweight: Up to 40% lighter than traditional aramid or steel-based ballistic solutions at comparable protection levels.
-
Non-Magnetic & Non-Conductive: Ideal for sensitive environments or use around electronic equipment.
-
Customization: Panels can be cut, machined, or bonded to accommodate various shapes, mounting hardware, or composite layering.
Specifications:
-
Standard Panel Size: Custom dimensions available upon request
-
Color/Finish: White or natural UHMWPE finish; paintable or coverable
-
Edge Finish: Sealed or raw-edge depending on application
-
Compliance: NIJ 0108.01 RF2 Certified, Made in the USA
Use Case Examples:
This panel is particularly well-suited for applications requiring high-level rifle protection without sacrificing mobility or payload, such as:
-
Tactical vehicle up-armoring
-
Concealed wall inserts in secure facilities
-
Lightweight ballistic doors and partitions
